To graph a line in standard form Ax + By = C, find two points that satisfy the equation, plot them, and draw the line through them. Intercepts are often the quickest choice.

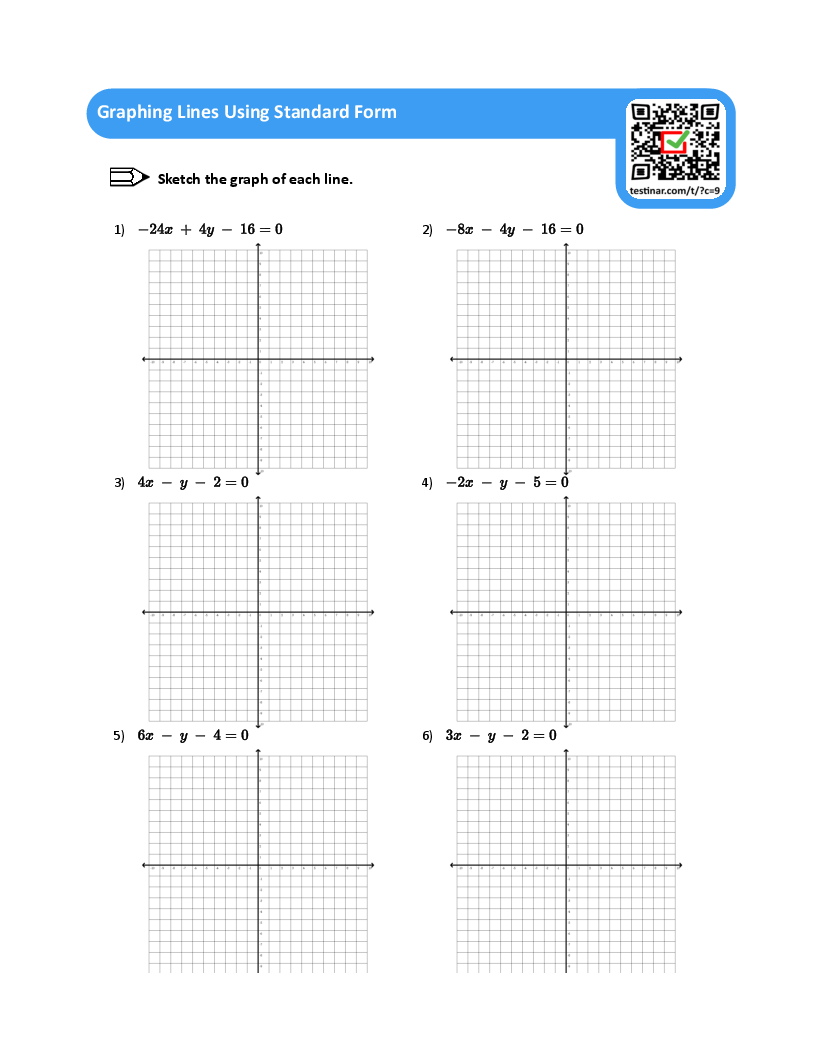

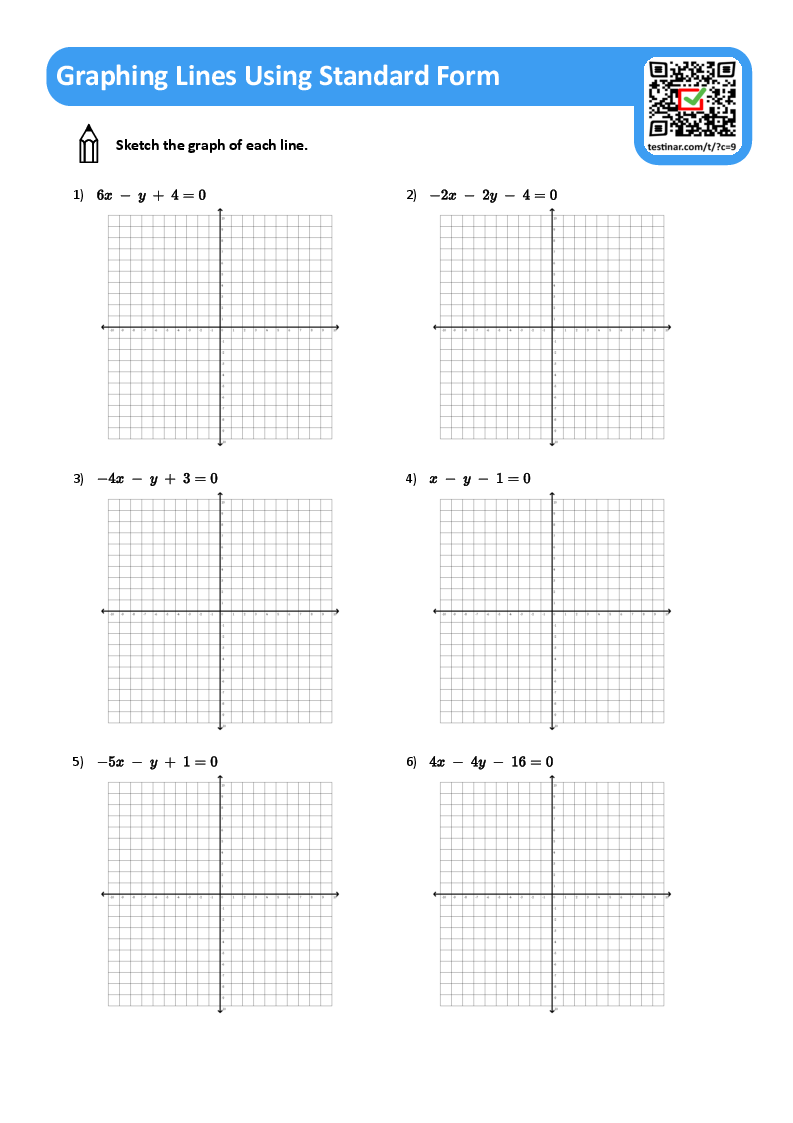

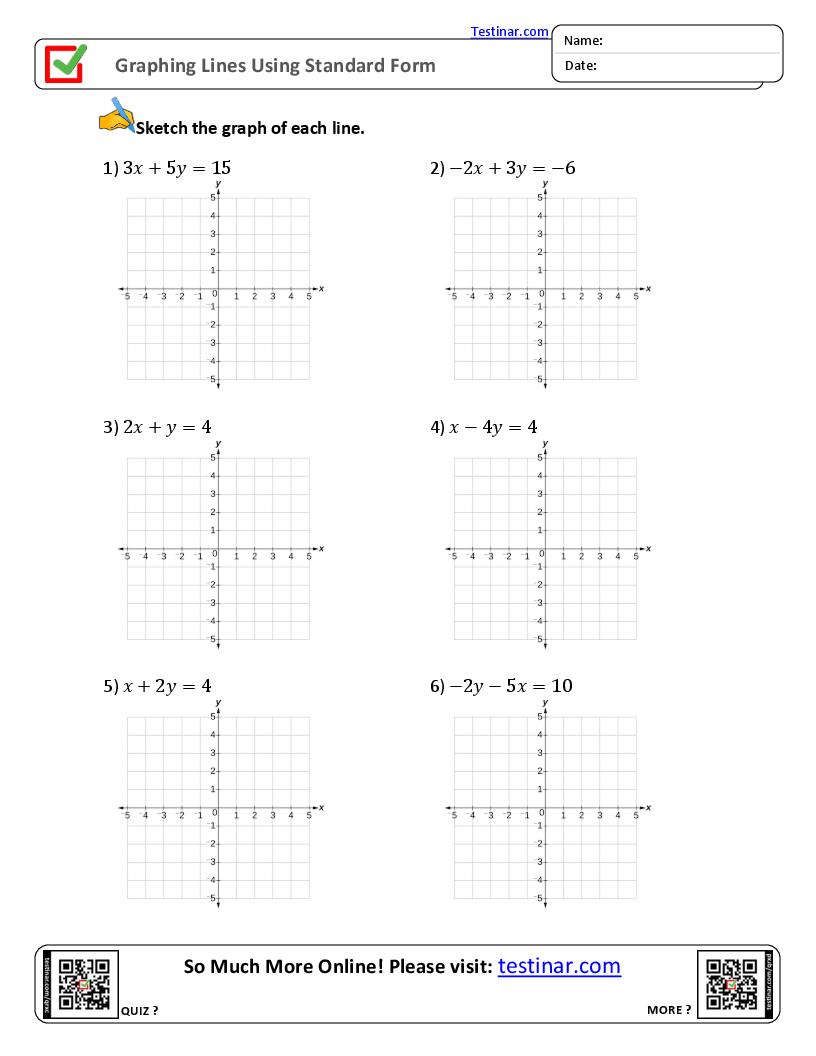

Standard-form graphing PDF set 1, PDF set 2, and additional graphing practice. Use the worked examples below to check your method.

Use x- and y-intercepts

Standard form is \(Ax+By=C\), with A and B not both zero. When both are nonzero, set \(y=0\) to find the x-intercept \((C/A,0)\), and set \(x=0\) to find the y-intercept \((0,C/B)\). Intercepts are points, not slopes.

  1. Calculate two distinct points.
  2. Choose a scale that fits both coordinates.
  3. Plot carefully: x is horizontal and y is vertical.
  4. Draw a straight line with arrows, then test another point in the original equation.

Worked examples and special cases

Example 1: \(2x+3y=12\). With \(y=0\), \(2x=12\), so plot \((6,0)\). With \(x=0\), \(3y=12\), so plot \((0,4)\). Draw the line through them. Check \((3,2)\): \(2(3)+3(2)=12\), so it also lies on the line.

Example 2: \(3x-2y=6\). The intercepts are \((2,0)\) and \((0,-3)\). To check the slope, rearrange: \(-2y=6-3x\), then \(y=(3/2)x-3\). From \((0,-3)\), move right 2 and up 3 to reach \((2,0)\).

For \(x-y=0\), both intercept calculations give \((0,0)\). That is only one point. Choose \(x=2\), giving \(y=2\), and draw through \((0,0)\) and \((2,2)\).

For \(x=4\), every point has x-coordinate 4: draw a vertical line. For \(y=-2\), draw a horizontal line. Do not divide by a zero coefficient while trying to use an intercept formula.

Common graphing mistakes

  • In \(Ax+By=C\), A is not automatically the slope. When \(B\ne0\), slope is \(-A/B\).
  • Keep the negative sign when dividing to isolate y.
  • Do not connect two identical intercept points and assume you have a line.
  • Use equal spacing along each axis and label any scale other than one unit per square.

Practice and solutions

  1. Find the intercepts of \(x+2y=8\).
  2. Graph \(2x-y=0\) using two distinct points.
  3. Describe the graph of \(3x=9\).
Show the steps
  1. Set y to 0: x = 8, giving (8,0). Set x to 0: 2y = 8, so y = 4, giving (0,4).
  2. Rewrite as \(y=2x\). Choose x = 0 and x = 1, giving (0,0) and (1,2). Draw the line through both.
  3. Divide by 3 to get \(x=3\): a vertical line through (3,0), with undefined slope.

Compare this method with graphing in slope-intercept form.
