Sketch Each Angle in Standard Position

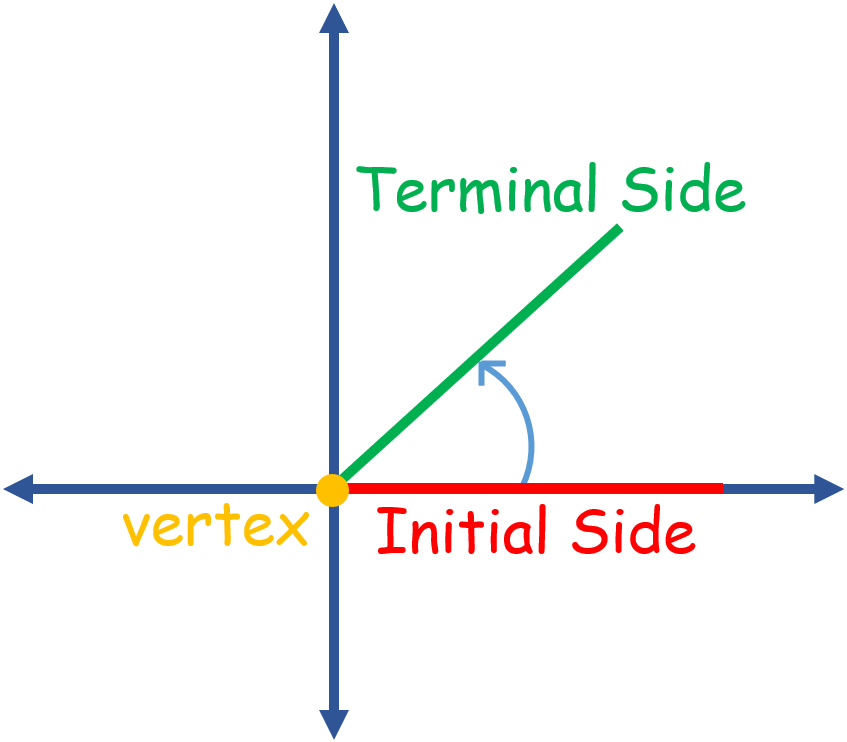

A standard-position angle has its vertex at the plane's origin. Along the positive \(x\)-axis is where its initial ray (beginning side) is located. From the beginning side, its terminal ray (finishing side) travels counterclockwise.

Sketch Each Angle in Standard Position

The angle is negative if the terminal ray rotates in a clockwise direction. Greek letters are often used to identify angles in their standard position.

How to Make a Negative Angle in Standard Position

Drawing a picture will help you figure out how to solve a problem in trigonometry many times, if not permanently. So what should you do if someone asks you to draw an angle larger than \(360\) degrees? Or a negative angle? Don't worry, the steps below will assist you:

Let's solve an example step by step

Example: Draw a \(-640°\) angle.

  • By adding \(360\) degrees, get the co-terminal angle.
    \(-640° \ + \ 360° \ = \ -280°\)
  • If the angle is still negative, keep adding \(360\) degrees until bring you a positive angle in the standard position.
    \(-280° \ + \ 360° \ = \ 80°\)
  • Draw the angle you get in Step \(2\).

Sketch Each Angle in Standard Position2

There are two things you should notice:

  • Do you move in a clockwise or counterclockwise direction?
  • How many times do you circle the coordinate plane's origin?

Since you are determining a negative angle, this angle begins at \(0\) on the \(x\)-axis and travels clockwise.

Summary

- The standard position of an angle is when its vertex is located at the origin and its initial side extends along the positive \(x\)-axis.
- A positive angle is the angle measured in a counterclockwise direction from the initial side to the terminal side.
- A negative angle is the angle measured in a clockwise direction from the initial side to the terminal side.

Sketch Each Angle in Standard Position

Think of this lesson as more than a rule to memorize. Sketch Each Angle in Standard Position is about angles, triangles, radians, and circular motion. A strong student does not rush to the first formula on the page; they pause, identify the structure of the problem, and then choose the tool that matches that structure. That pause is what prevents most mistakes.

Trig ratios connect angles to side lengths. In a right triangle, \(\sin\theta=\frac{opposite}{hypotenuse}\), \(\cos\theta=\frac{adjacent}{hypotenuse}\), and \(\tan\theta=\frac{opposite}{adjacent}\).

Here is the teacher way to approach the topic. First, read the problem slowly and underline the information that is actually given. Next, name the target: are you finding a value, simplifying an expression, comparing two quantities, solving for a variable, or interpreting a graph? Once the target is clear, the calculation becomes much less mysterious because every step has a job.

  • Identify the input value or expression.
  • Substitute carefully using parentheses.
  • Simplify one operation at a time.
  • Check domain restrictions such as zero denominators or even roots.

A helpful habit is to say what each number represents before using it. For example, if a number is a denominator, a radius, a slope, a common difference, or a coefficient, it should not be treated like an ordinary loose number. Its role tells you where it belongs in the formula. This is especially important on ACT-style questions because many wrong answer choices come from using the right numbers in the wrong places.

Another good habit is to keep the work organized vertically. Write one clean line for substitution, one line for simplifying, and one line for the final answer. If the problem has units, keep the units attached. If the problem has signs, exponents, or parentheses, copy them carefully from one line to the next. Most errors in this topic are not caused by a hard idea; they are caused by dropping a negative sign, combining unlike terms, using the wrong denominator, or skipping a check.

When you finish, ask a quick reasonableness question. Should the answer be positive or negative? Should it be larger or smaller than the original number? Does it fit the graph, table, shape, or equation? Can you plug it back into the original problem? This final check turns the lesson from a procedure into understanding.

On a test, the goal is not to write the longest solution. The goal is to write enough clear work that you can see the structure, avoid traps, and recover quickly if one line goes wrong. Practice the examples below with that mindset: identify the type of problem, choose the matching rule, show the substitution, simplify carefully, and check the answer before moving on.

Free printable Worksheets

Exercises for Sketching Each Angle in Standard Position

1) Sketch \(45°\) in standard position. State the quadrant and reference angle.

2) Sketch \(120°\) in standard position. State the quadrant and reference angle.

3) Sketch \(225°\) in standard position. State the quadrant and reference angle.

4) Sketch \(315°\) in standard position. State the quadrant and reference angle.

5) Sketch \(-60°\) in standard position. State the quadrant and reference angle.

6) Sketch \(450°\) in standard position. State where the terminal side lies.

7) Sketch \(\frac{7π}{6}\) in standard position. State the quadrant and reference angle.

8) Sketch \(-\frac{3π}{4}\) in standard position. State the quadrant and reference angle.

9) Sketch \(\frac{5π}{2}\) in standard position. State where the terminal side lies.

10) Sketch \(\frac{11π}{3}\) in standard position. State the quadrant and reference angle.

11) Sketch \(-\frac{11π}{6}\) in standard position. State the quadrant and reference angle.

12) Sketch \(\frac{13π}{4}\) in standard position. State the quadrant and reference angle.

13) Sketch \(720°\) in standard position. State where the terminal side lies.

14) Sketch \(-210°\) in standard position. State the quadrant and reference angle.

15) Sketch \(1000°\) in standard position. State the quadrant and reference angle.

16) Sketch \(-\frac{19π}{6}\) in standard position. State the quadrant and reference angle.

17) Sketch \(\frac{17π}{3}\) in standard position. State the quadrant and reference angle.

18) Sketch \(-765°\) in standard position. State the quadrant and reference angle.

19) Sketch \(\frac{31π}{6}\) in standard position. State the quadrant and reference angle.

20) Sketch \(-\frac{25π}{4}\) in standard position. State the quadrant and reference angle.



1)Sketch \(45°\) in standard position. State the quadrant and reference angle.

The initial side lies on the positive \(x\)-axis. Rotate counterclockwise \(45°\).

The terminal side is between \(0°\) and \(90°\), so it is in Quadrant I.

\(\color{red}{\text{Quadrant I; reference angle }45°}\)

2)Sketch \(120°\) in standard position. State the quadrant and reference angle.

Since \(90°<120°<180°\), the terminal side is in Quadrant II.

The reference angle is \(180°-120°=60°\).

\(\color{red}{\text{Quadrant II; reference angle }60°}\)

3)Sketch \(225°\) in standard position. State the quadrant and reference angle.

Since \(180°<225°<270°\), the terminal side is in Quadrant III.

The reference angle is \(225°-180°=45°\).

\(\color{red}{\text{Quadrant III; reference angle }45°}\)

4)Sketch \(315°\) in standard position. State the quadrant and reference angle.

Since \(270°<315°<360°\), the terminal side is in Quadrant IV.

The reference angle is \(360°-315°=45°\).

\(\color{red}{\text{Quadrant IV; reference angle }45°}\)

5)Sketch \(-60°\) in standard position. State the quadrant and reference angle.

A negative angle rotates clockwise from the positive \(x\)-axis.

Clockwise \(60°\) lands in Quadrant IV.

\(\color{red}{\text{Quadrant IV; reference angle }60°}\)

6)Sketch \(450°\) in standard position. State where the terminal side lies.

Subtract one full turn: \(450°-360°=90°\).

An angle of \(90°\) lies on the positive \(y\)-axis.

\(\color{red}{\text{Terminal side on the positive }y\text{-axis}}\)

7)Sketch \(\frac{7π}{6}\) in standard position. State the quadrant and reference angle.

\(\frac{7π}{6}=\pi+\frac{π}{6}\), so the terminal side is past \(π\).

That places the angle in Quadrant III.

\(\color{red}{\text{Quadrant III; reference angle }\frac{π}{6}}\)

8)Sketch \(-\frac{3π}{4}\) in standard position. State the quadrant and reference angle.

Add \(2π\): \(-\frac{3π}{4}+2π=\frac{5π}{4}\).

\(\frac{5π}{4}\) lies in Quadrant III.

\(\color{red}{\text{Quadrant III; reference angle }\frac{π}{4}}\)

9)Sketch \(\frac{5π}{2}\) in standard position. State where the terminal side lies.

Subtract \(2π=\frac{4π}{2}\): \(\frac{5π}{2}-\frac{4π}{2}=\frac{π}{2}\).

\(\frac{π}{2}\) lies on the positive \(y\)-axis.

\(\color{red}{\text{Terminal side on the positive }y\text{-axis}}\)

10)Sketch \(\frac{11π}{3}\) in standard position. State the quadrant and reference angle.

Subtract \(2π=\frac{6π}{3}\): \(\frac{11π}{3}-\frac{6π}{3}=\frac{5π}{3}\).

\(\frac{5π}{3}\) lies in Quadrant IV.

\(\color{red}{\text{Quadrant IV; reference angle }\frac{π}{3}}\)

11)Sketch \(-\frac{11π}{6}\) in standard position. State the quadrant and reference angle.

Add \(2π=\frac{12π}{6}\): \(-\frac{11π}{6}+\frac{12π}{6}=\frac{π}{6}\).

\(\frac{π}{6}\) lies in Quadrant I.

\(\color{red}{\text{Quadrant I; reference angle }\frac{π}{6}}\)

12)Sketch \(\frac{13π}{4}\) in standard position. State the quadrant and reference angle.

Subtract \(2π=\frac{8π}{4}\): \(\frac{13π}{4}-\frac{8π}{4}=\frac{5π}{4}\).

\(\frac{5π}{4}\) lies in Quadrant III.

\(\color{red}{\text{Quadrant III; reference angle }\frac{π}{4}}\)

13)Sketch \(720°\) in standard position. State where the terminal side lies.

\(720°\) is two full counterclockwise rotations.

After full rotations, the terminal side returns to the positive \(x\)-axis.

\(\color{red}{\text{Terminal side on the positive }x\text{-axis}}\)

14)Sketch \(-210°\) in standard position. State the quadrant and reference angle.

Add \(360°\): \(-210°+360°=150°\).

\(150°\) lies in Quadrant II, and \(180°-150°=30°\).

\(\color{red}{\text{Quadrant II; reference angle }30°}\)

15)Sketch \(1000°\) in standard position. State the quadrant and reference angle.

Subtract \(720°\): \(1000°-720°=280°\).

\(280°\) lies in Quadrant IV, and \(360°-280°=80°\).

\(\color{red}{\text{Quadrant IV; reference angle }80°}\)

16)Sketch \(-\frac{19π}{6}\) in standard position. State the quadrant and reference angle.

Add \(4π=\frac{24π}{6}\): \(-\frac{19π}{6}+\frac{24π}{6}=\frac{5π}{6}\).

\(\frac{5π}{6}\) lies in Quadrant II.

\(\color{red}{\text{Quadrant II; reference angle }\frac{π}{6}}\)

17)Sketch \(\frac{17π}{3}\) in standard position. State the quadrant and reference angle.

Subtract \(4π=\frac{12π}{3}\): \(\frac{17π}{3}-\frac{12π}{3}=\frac{5π}{3}\).

\(\frac{5π}{3}\) lies in Quadrant IV.

\(\color{red}{\text{Quadrant IV; reference angle }\frac{π}{3}}\)

18)Sketch \(-765°\) in standard position. State the quadrant and reference angle.

Add \(1080°\): \(-765°+1080°=315°\).

\(315°\) lies in Quadrant IV, and \(360°-315°=45°\).

\(\color{red}{\text{Quadrant IV; reference angle }45°}\)

19)Sketch \(\frac{31π}{6}\) in standard position. State the quadrant and reference angle.

Subtract \(4π=\frac{24π}{6}\): \(\frac{31π}{6}-\frac{24π}{6}=\frac{7π}{6}\).

\(\frac{7π}{6}\) lies in Quadrant III.

\(\color{red}{\text{Quadrant III; reference angle }\frac{π}{6}}\)

20)Sketch \(-\frac{25π}{4}\) in standard position. State the quadrant and reference angle.

Add \(8π=\frac{32π}{4}\): \(-\frac{25π}{4}+\frac{32π}{4}=\frac{7π}{4}\).

\(\frac{7π}{4}\) lies in Quadrant IV.

\(\color{red}{\text{Quadrant IV; reference angle }\frac{π}{4}}\)
